Aerospace Linear Actuators

Ultra Motion has a long history of working with aerospace firms to design state of the art linear actuators for manned and unmanned flight applications.
Our electromechanical actuators designed for aerospace applications can push the envelope when it comes to performance in demanding environments. Our engineering team has an in-depth knowledge of cutting edge manufacturing techniques and high performance alloys. We also have extremely volumetrically efficient brushless motors coupled with Ultra Motion’s patent pending contactless, Phase Index digital absolute position sensor that has positioned Ultra Motion as an industry leader in this market space. Our aerospace actuators have power densities that far exceed what can be found on other actuators in similar size and weight categories. We excel at understanding and addressing the requirements (both stated and unstated) in unmanned and manned flight applications. Performance specifications including:
  • Temperature ranges from 85°C down to -55°C
  • High shock and vibration
  • Environmental sealing
  • High bandwidth servo response
  • Vacuum and radiation exposure
  • Batteryless absolute position
Design and Manufacturing capabilities including:
  • Revision control
  • Lot tracking
  • ESD prevention programs
  • Electronic soldering and assembly certifications
  • Conformal coatings
  • 100% acceptance testing
  • FAA 8130-9 (Statement of Conformity) process
  • Working with FAA Designated Engineering Representatives (DERs) to attain Parts Manufacturer Approval (PMA) certification.
Contact Us To Discuss Your Application
INDUSTRY SPOTLIGHT

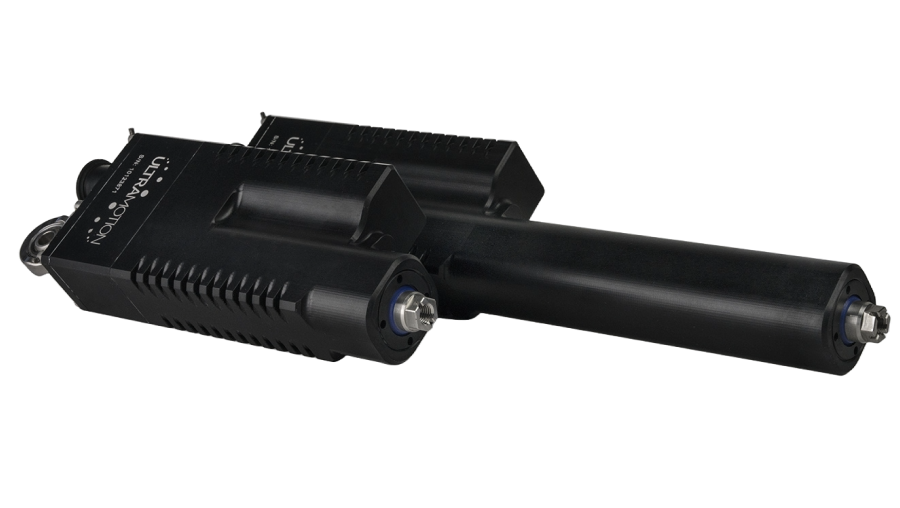

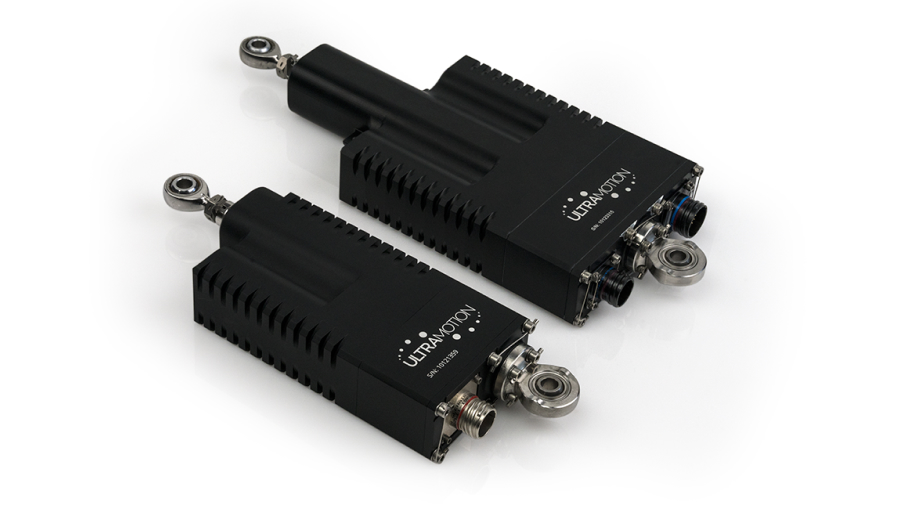

HIGH PERFORMANCE - SPACE

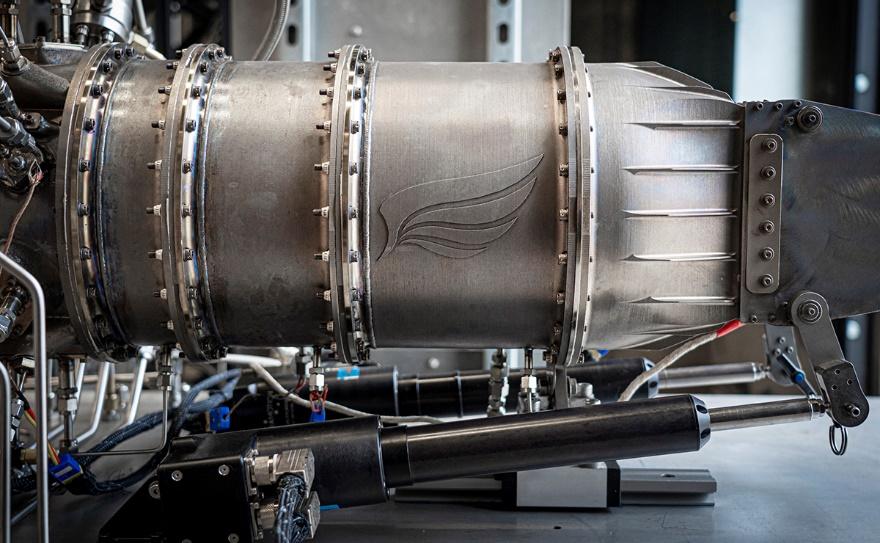

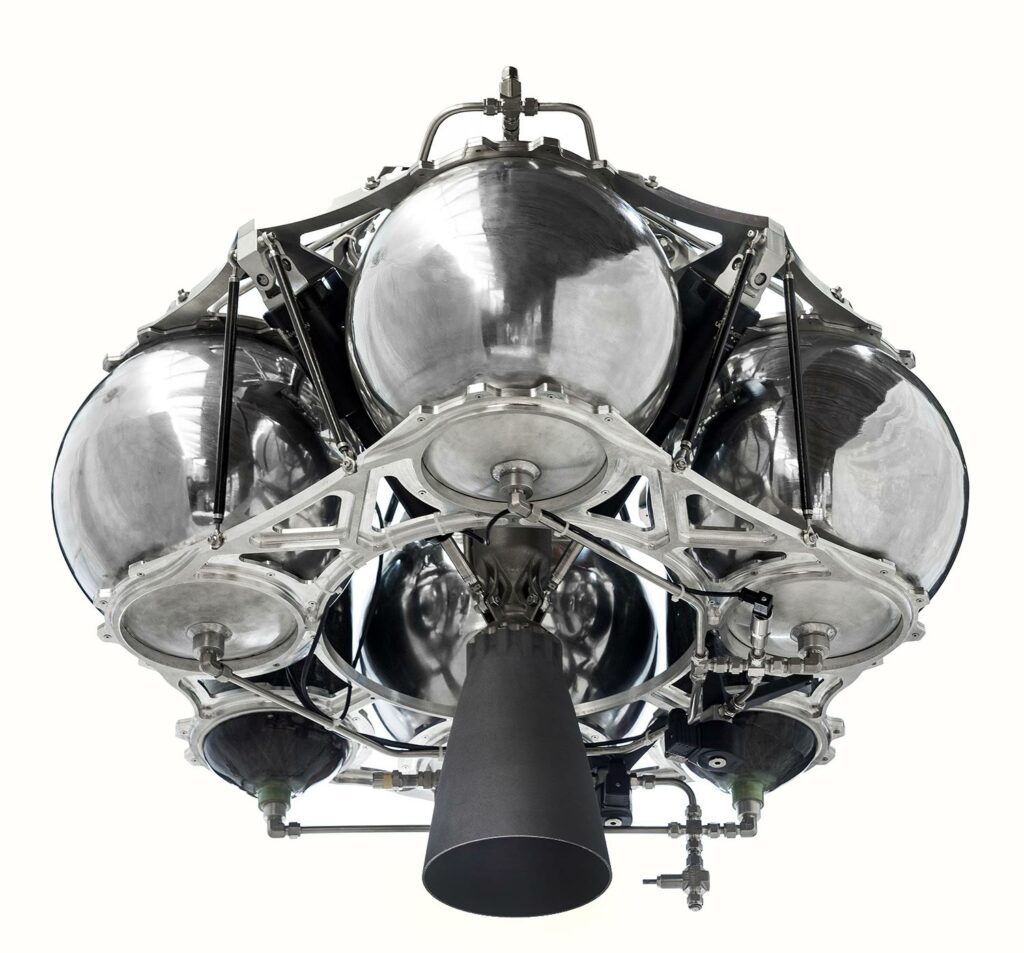

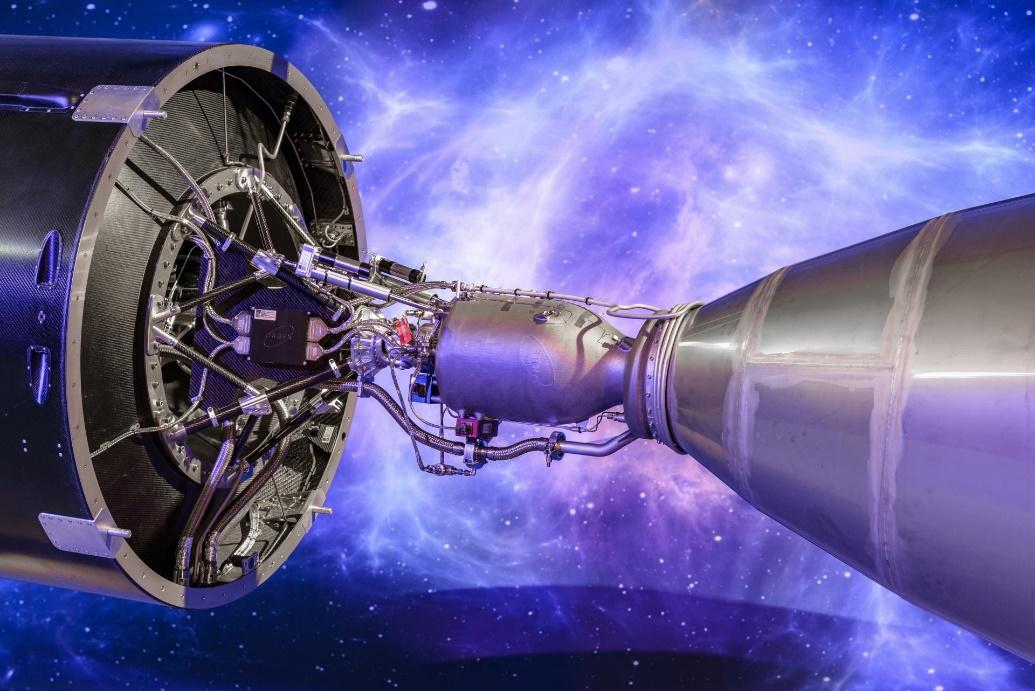

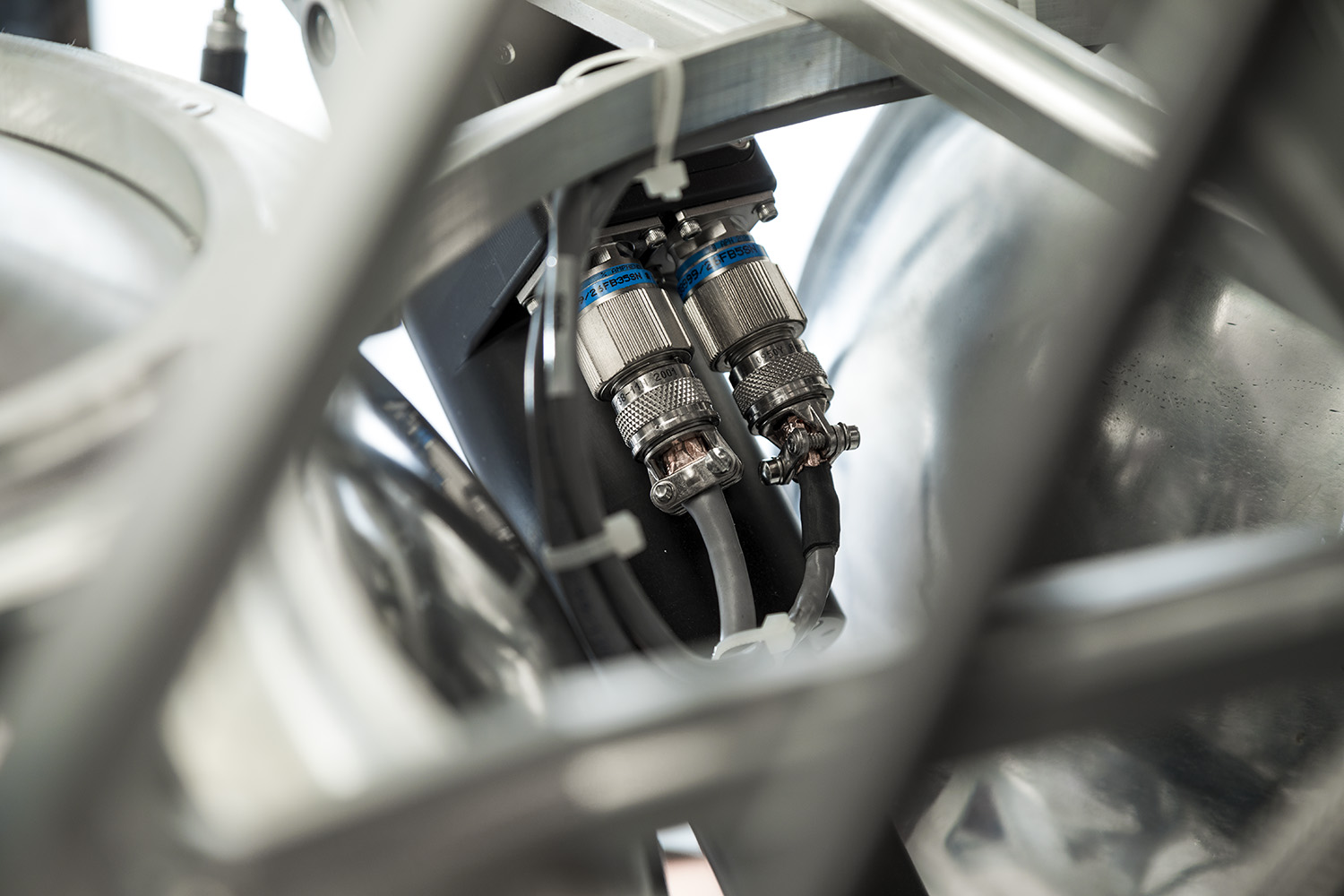

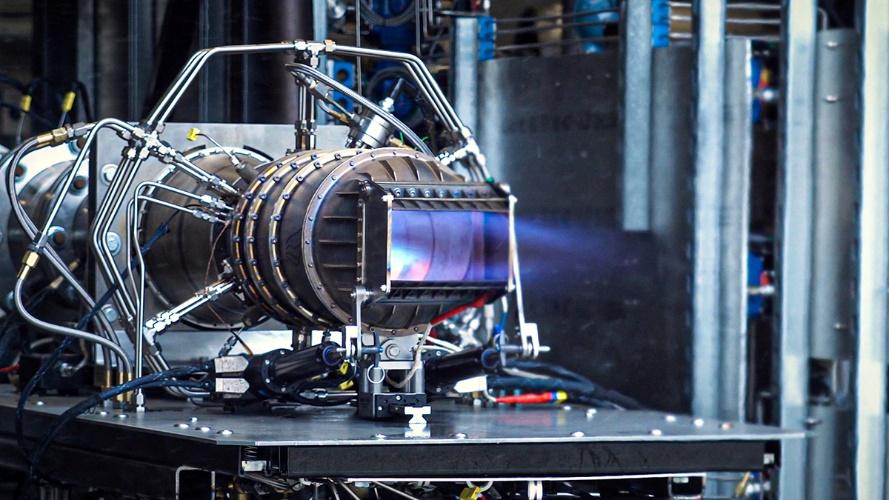

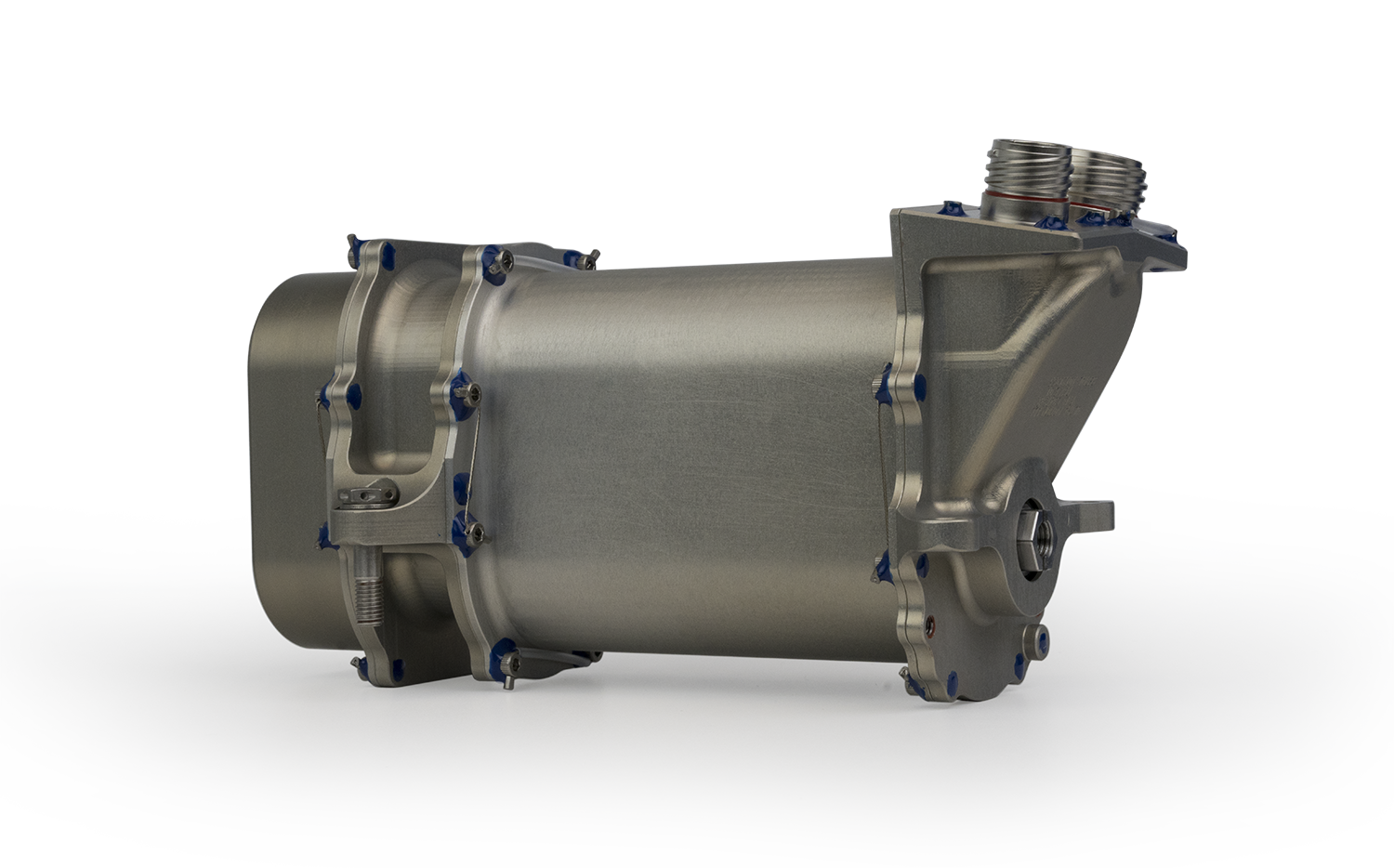

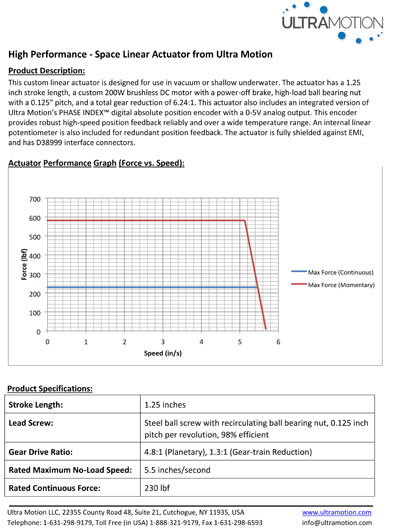

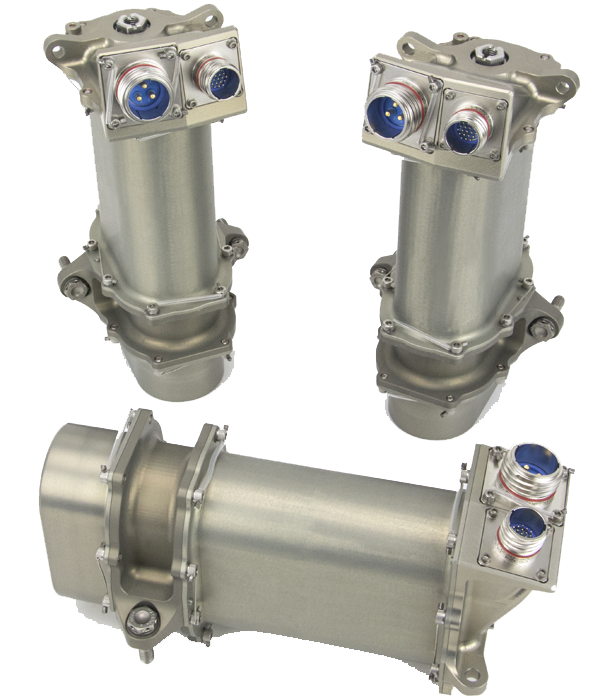

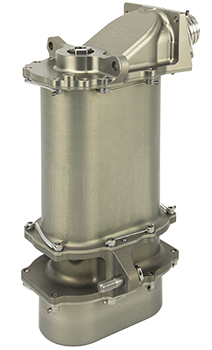

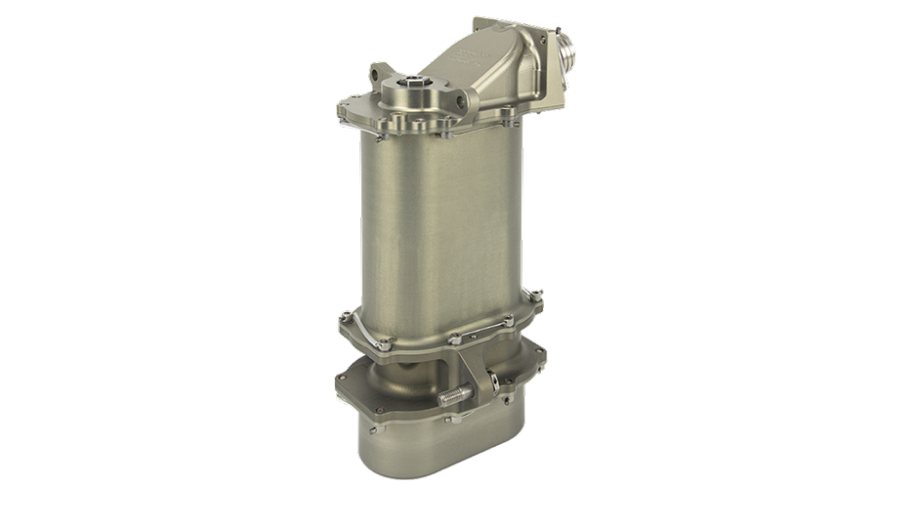

This custom linear actuator is designed for use in vacuum or shallow underwater. The actuator has a 1.25 inch stroke length, a custom 200W brushless DC motor with a power-off brake, high-load ball bearing nut with a 0.125″ pitch, and a total gear reduction of 6.24:1. This actuator also includes an integrated version of Ultra Motion’s Phase Index™ digital absolute position encoder with a 0-5V analog output. This encoder provides robust high-speed position feedback reliably and over a wide temperature range. An internal linear potentiometer is also included for redundant position feedback. The actuator is fully shielded against EMI, and has D38999 interface connectors. Contact Us for more information.



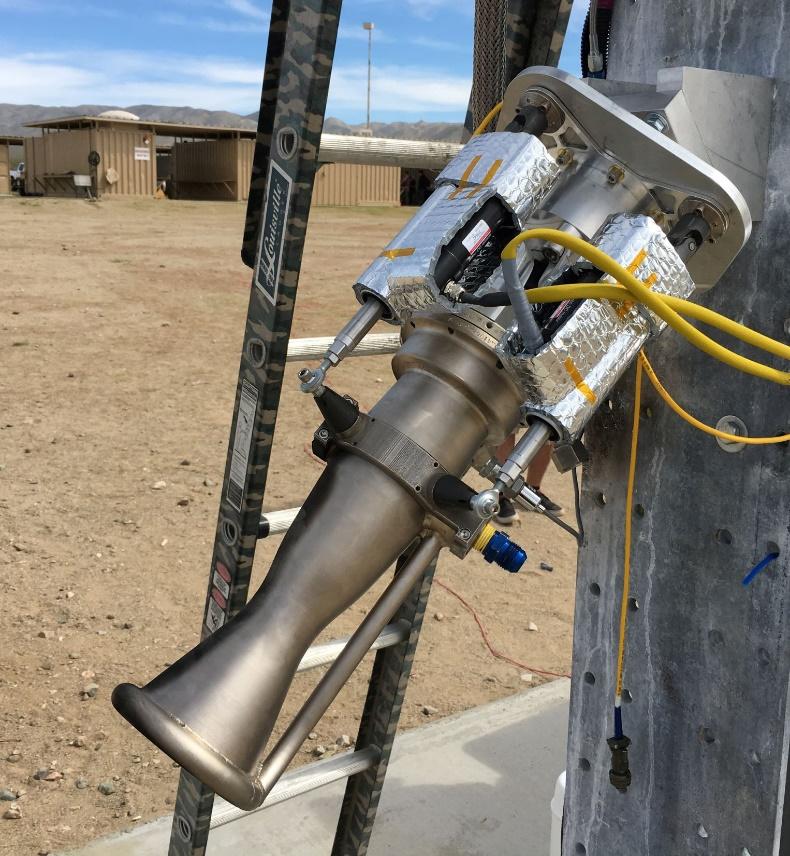

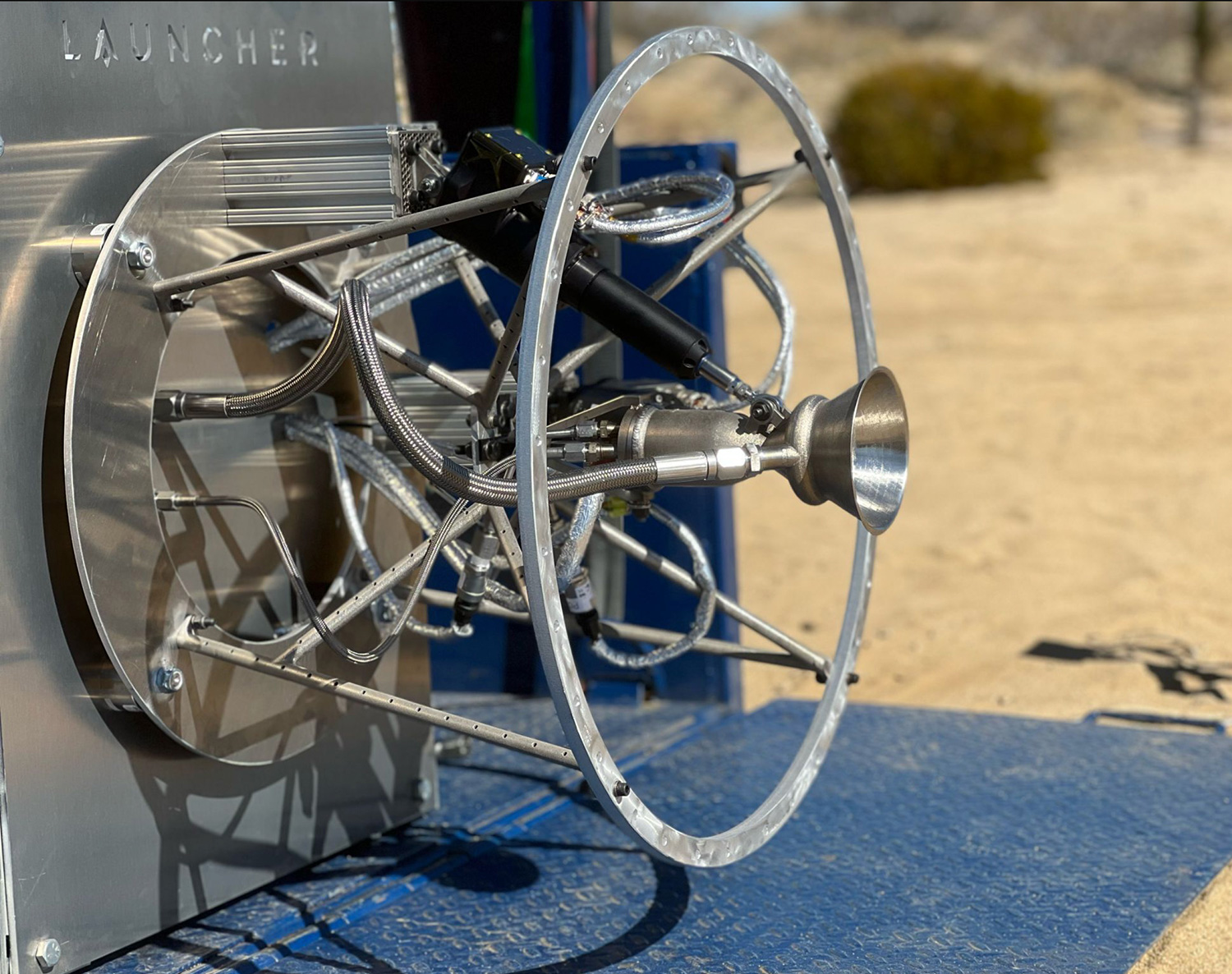

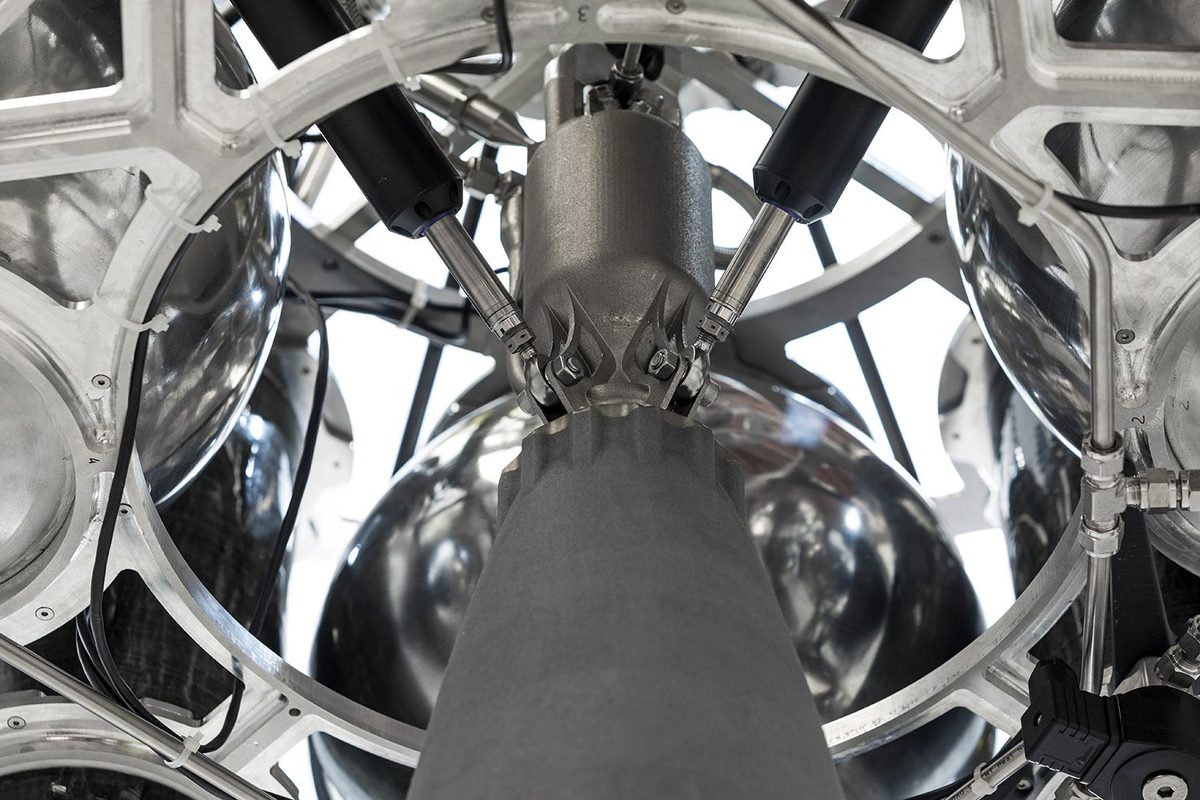

ROCKET GIMBAL

“We just had a flight to 140,000 feet, and we used 4 of your Bug [B series] Actuators on the vehicle, all in critical systems. We like this actuator so much that we always look at ways to replace some of our other actuators, even the rotary actuators, with the Bug [B series] linear actuator. We have one on the main throttle control, one on the emergency cutoff system, and two for the gimbal actuators, which are constantly adjusting the engine position to keep the rocket straight.”
– Phil Eaton, Armadillo Aerospace

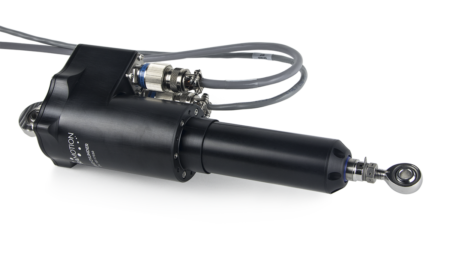

B1 Parallel Mount Linear Actuator with BLDC Motor

Armadillo Rocket with Ultra Motion Actuators
Image Courtesy of Armadillo Aerospace

R-SERIES

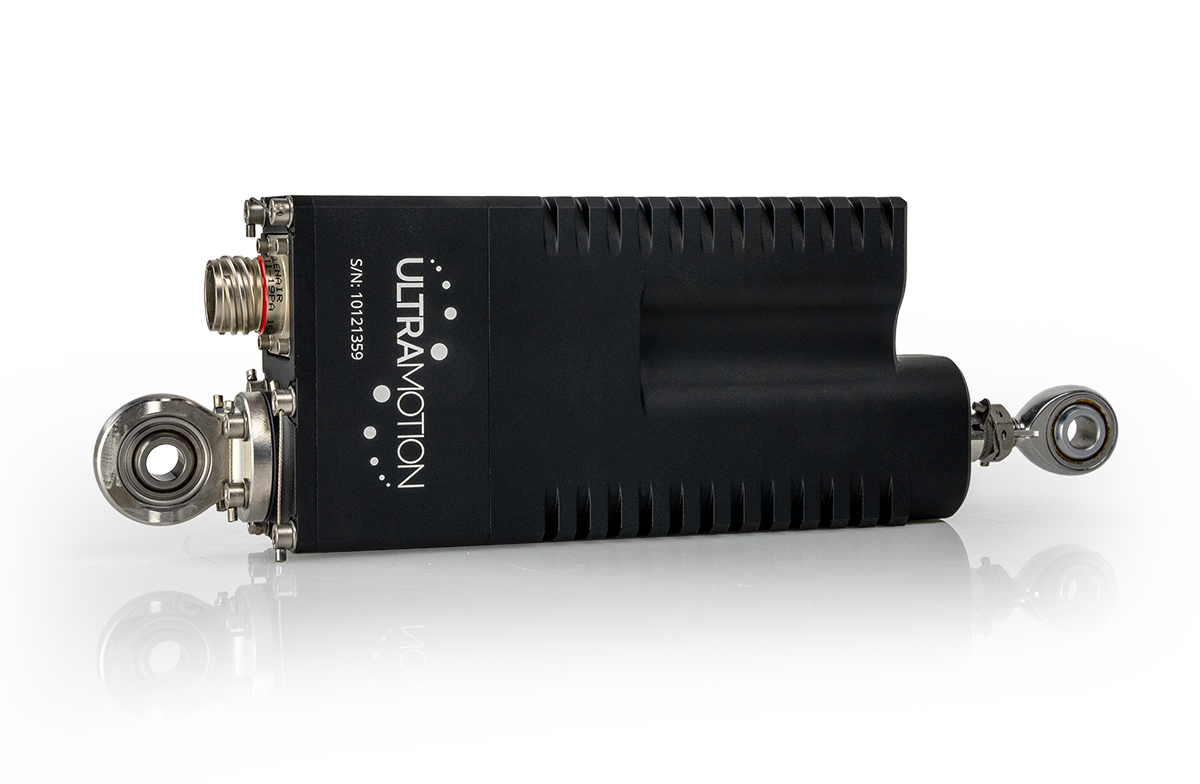

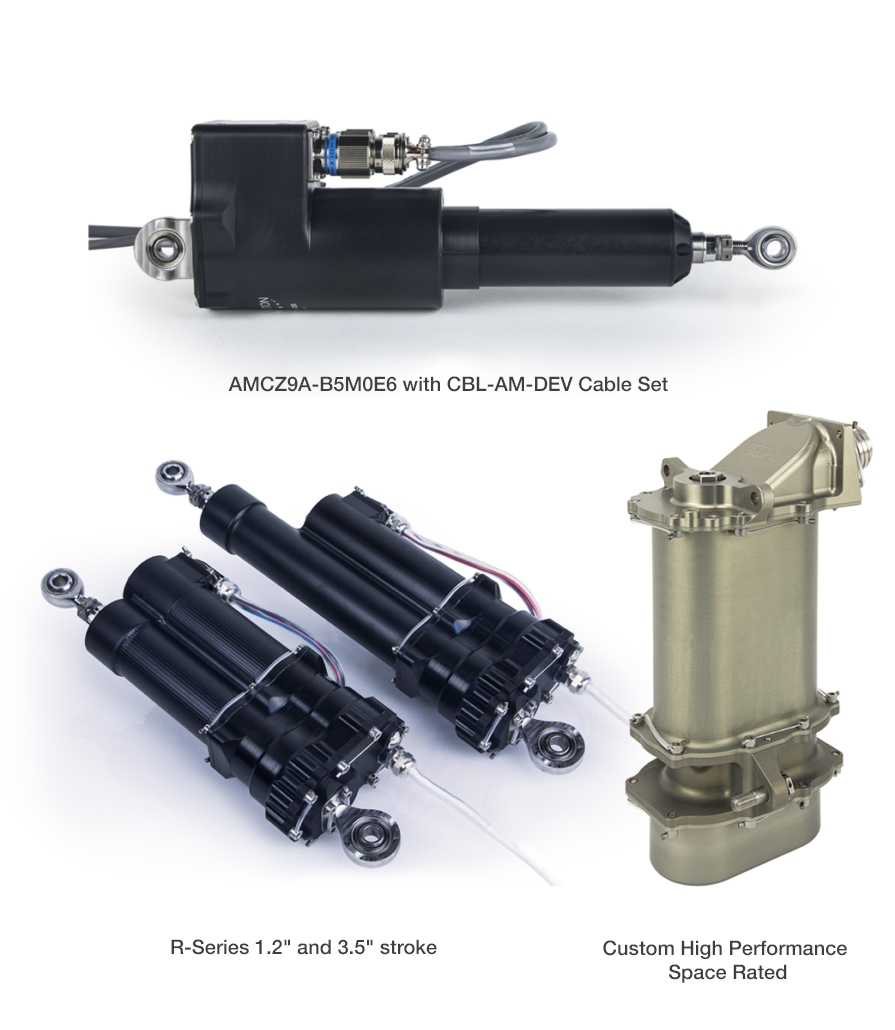

Introducing New R-Series Actuators

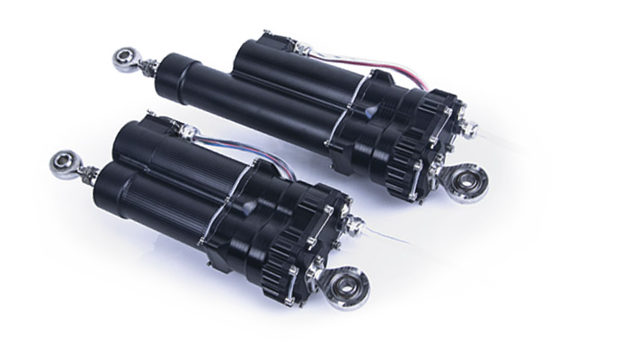

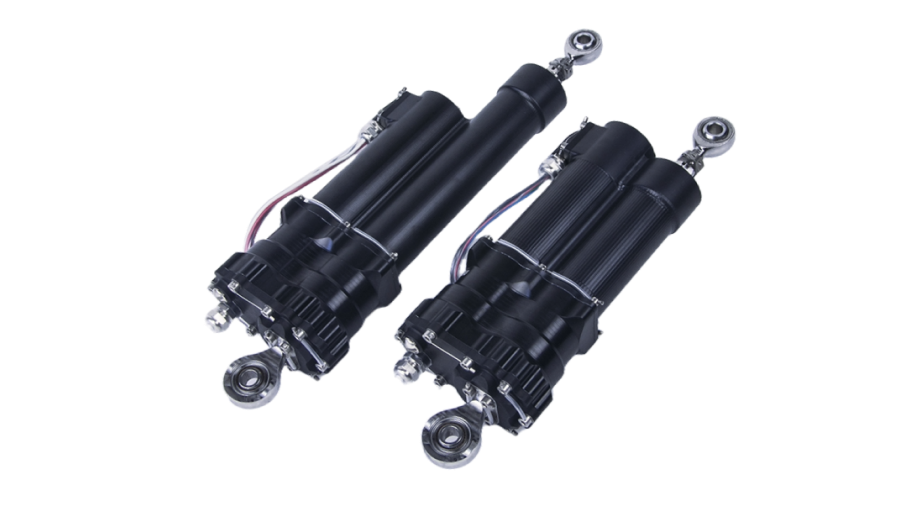

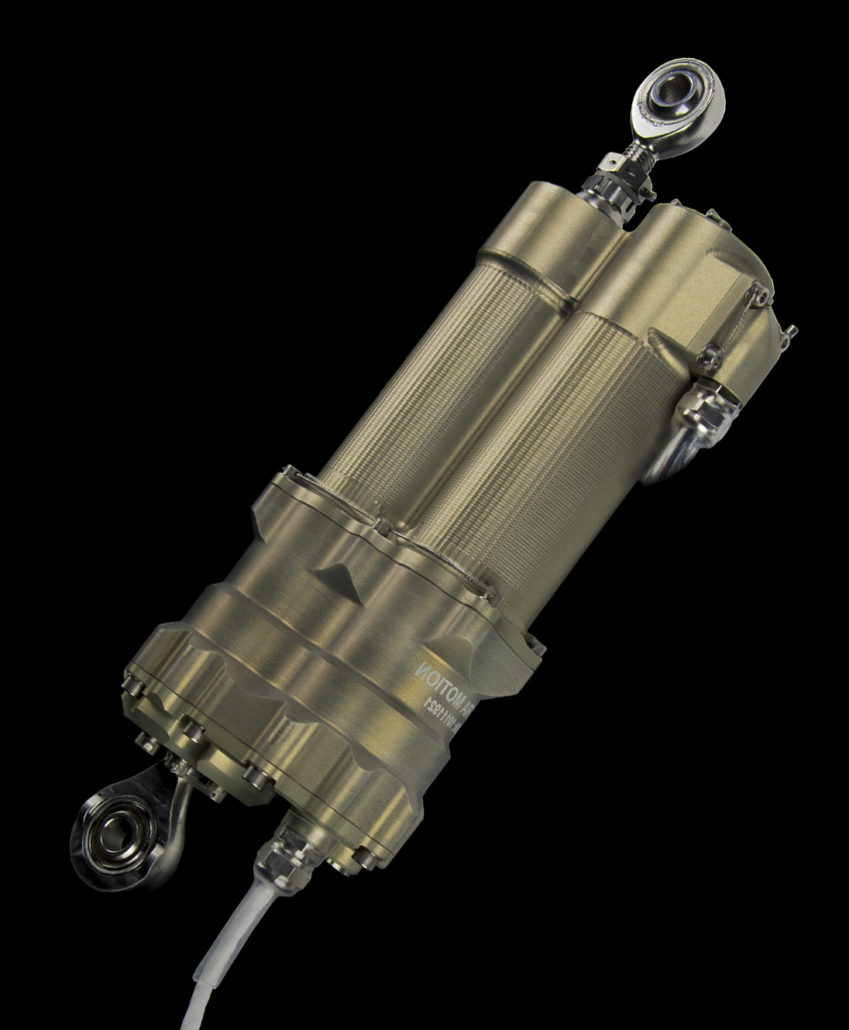

Designed for the demanding shock and vibration environments of the new-space industry, the R-Series actuators from Ultra Motion leverage years of heritage in high reliability actuator design for spaceflight applications. Using Ultra Motion’s flight proven, patented Phase Index absolute position sensor, the R-Series provides high resolution absolute position feedback in the most extreme environments and with uncontested mass, economy, and power density. The R-Series actuators are the perfect solution for high reliability new-space and aerospace applications such as thrust vector control, throttle control, and fin control.

  • Dual Redundant Absolute Position Feedback
  • Forces up to 1200 lbf peak
  • Speeds up to 2.5 in/s
  • Stroke up to 3.5 inches
  • Mass < 3.0 lbm

The R-Series is a modular platform allowing for application specific requirements to easily be met, such as Mighty Mouse connectors, specific mounting arrangements, variations in force/speed, etc. Contact Ultra Motion engineering for more details.
